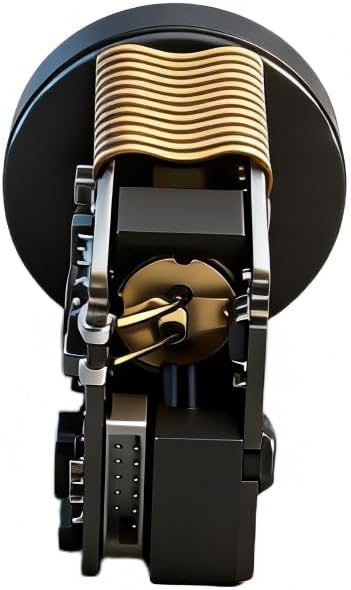

SPD1200M17 IP67 Waterproof High Precision Laser Ranging Module, ±0.3m Accuracy 905nm 0.2-1200m (1500m Night) Mini Laser Distance Sensor for Thermal Imager/Night Vision/Telescope

The SPD1200M17 is a high-precision, compact laser ranging module designed for seamless integration into a wide range of professional and industrial applications. Operating at a center wavelength of 905 nm, this rangefinder delivers reliable distance measurements from as close as 0.79 inches (0.2 m) up to 3,937 feet (1,200 m), with nighttime performance extending to 4,921 feet (1,500 m). Ranging accuracy is ±0.98 inches (±0.3 m) for targets within 328 feet (100 m), ensuring dependable readings across varying conditions. The module features an adaptive measurement frequency of 2–15 Hz, a measurement accuracy rate of ≥98%, and an ultra-low false alarm rate of ≤1%. Weighing just approximately 0.21 oz (6 g) and measuring ø17×27.85 mm, it is ideal for integration into night vision devices, thermal imagers, telescopes, and laser illuminators. The UART-TTL communication interface supports secondary development, while the IP67 protection rating ensures durability in demanding environments. Operating temperatures range from -4°F to +140°F (-20°C to +60°C), making it suitable for border security, aviation, railway systems, law enforcement, and outdoor sports applications.

• LONG-RANGE PRECISION: Measures distances from 0.2 m to 1200 m with ±0.3m accuracy, and up to 1500 m range at nighttime.
• HIGH-PERFORMANCE LASER: Operates at a 905 nm wavelength with less than 4 mrad beam divergence and a measurement accuracy rate of ≥98% with a false alarm rate of ≤1%.
• COMPACT AND LIGHTWEIGHT: Measuring just ø17×27.85 mm and weighing approximately 6 g, this module integrates easily into handheld devices like night vision scopes, thermal imagers, and telescopes.
• RUGGED AND RELIABLE: IP67 protection rating (inside lens cavity), shock resistance of 1000 g/ms, vibration resistance of 5–50–5 Hz at 2.5 g, and an MTBF of ≥1500 hours ensure dependable performance.
• EASY INTEGRATION: Features a UART-TTL communication interface (default 115200 bps baud rate), 3.3 V–5 V supply voltage, and adaptive 2–15 Hz measurement frequency for flexible secondary development.
